应用：

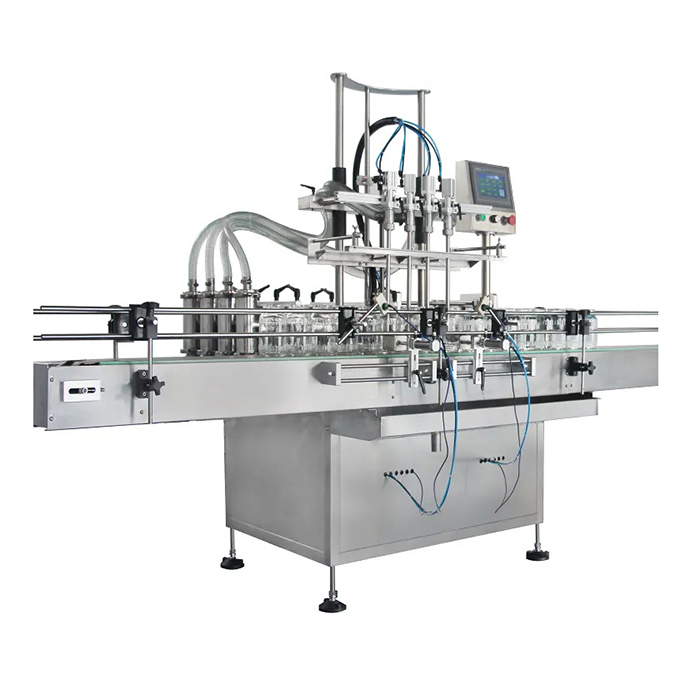

4 Heads Automatic Liquid Bottle Filling Machine is suitable to the material: coating agent, suspension agent, edible oil, lubricating oil and water agent etc.
原理和特点：
The machine is a ram filler, it using the PLC programmable control, equipping with tonching screen person-machine interface system, realizing automatic filling, automatic capping. it is suit for the different bottles and caps, only make some adjustment .
特性：
1. SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.
2. This machine is compact design, streamline bottle conveying, more stable.
3. No bottle no fill function.
4. Auto frequency conversion adjusting speed.
5. Auto display and count.
6. Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.
7. One machine can auto entry, filling adding capper, and sealing.
8. The whole machine is designed according to the requirements of GMP.
主要技术指标
| 灌装头数量 | 4个头 |
| 扭头数量 | 单头 |
| 填充范围 | 20〜千毫升 |
| 完美的范围 | 20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml |
| 封面的选择 | 防盗盖，螺丝盖，ROPP铝盖 |
| 生产能力 | 2400~3000（瓶/小时） |
| 测量精度 | ≤±1 |
| 合格率 | ≥99 |
| 功率 | 220V 50 / 60Hz |
| 总功率 | ≤1.2kw |
| 空气压力 | 0.4〜0.6MPa的 |
| 重量 | 800公斤 |
| 外形尺寸（mm） | 2000×1200×1600 |
快速详情
类型：灌装机
条件：新的
应用：饮料，化学，医疗
包装类型：瓶子
自动等级：自动
驱动类型：电动
电压：220V / 110V 50 / 60Hz
功率：≤1.2KW
产地：中国上海（大陆）
品牌名称：VKPAK
尺寸（长*宽*高）：2000 * 1200 * 1600mm
重量：800公斤
认证：GMP
提供售后服务：工程师可在海外维修机械
产品名称：液体瓶灌装机
填充范围：20~1000ml
完美范围：20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
生产能力：2400~3000（瓶/小时）
测量精度：≤±1
合格率：≥99
The choice of cover: Burglarproof cover, screw cover
A 4 heads automatic liquid bottle filling machine is a piece of equipment designed to fill bottles with liquids such as water, juice, oil, and other fluids. This machine works by accurately measuring and dispensing the required amount of liquid into the bottle through four filling heads that work simultaneously. The machine is fully automated, which makes the process faster, efficient, and less labor-intensive.
The 4 heads automatic liquid bottle filling machine is designed to handle a range of bottle sizes and shapes, making it versatile and ideal for use in a variety of industries. The machine can also fill different types of liquids, which makes it a suitable option for use in industries such as food and beverage, pharmaceuticals, and cosmetics.
The machine is easy to operate and has a user-friendly interface that allows for easy setup and programming of the filling parameters. The parameters can be customized to suit the specific needs of the product being filled, such as filling volumes and speeds.
The filling process is accurate and consistent, which helps to maintain the quality of the product being filled. The machine can also be integrated with a capping or labeling machine, which further streamlines the packaging process and increases efficiency.
In conclusion, a 4 heads automatic liquid bottle filling machine is an essential piece of equipment for any business that produces and bottles liquid products. It provides a fast, efficient, and accurate way of filling bottles with liquid products, which helps to increase productivity and reduce costs. The machine is customizable and can handle a range of bottle sizes and types, making it versatile and suitable for use in various industries.
