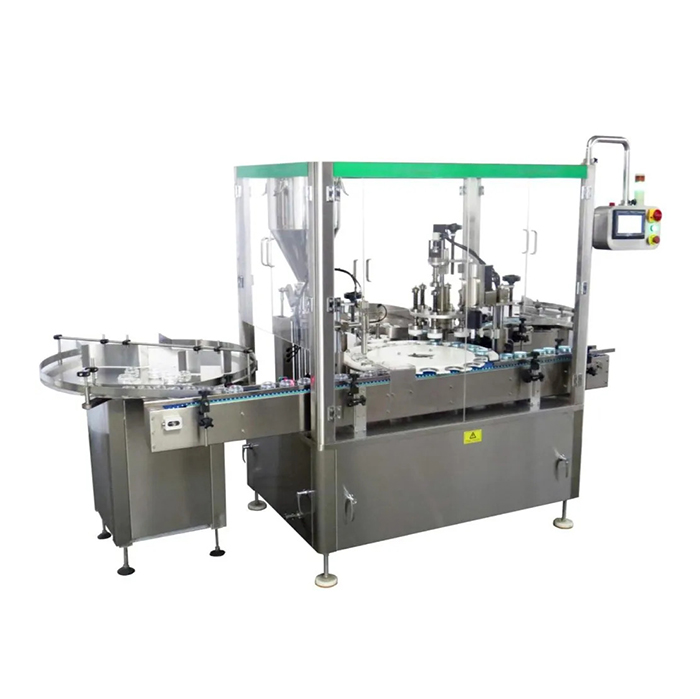

A rotary cosmetic filling and capping machine is a type of automated equipment used for filling and capping cosmetic products such as creams, lotions, and serums. The machine is designed to improve the efficiency and accuracy of the filling and capping process, allowing for higher production rates and reduced labor costs.
The machine works by using a rotating carousel that moves the containers through various stages of the filling and capping process. At the filling station, the product is dispensed into the container using a filling nozzle, which is controlled by a sensor to ensure accurate fill levels. Once filled, the containers are moved to the capping station, where they are sealed with a cap or a pump dispenser.
The rotary cosmetic filling and capping machine can be configured to handle different types of containers, such as jars, bottles, and tubes, and can be adjusted to accommodate different product viscosities and fill volumes. The machine can also be equipped with additional features such as label applicators, induction sealers, and conveyors to further streamline the packaging process.
Overall, the rotary cosmetic filling and capping machine offers a reliable and efficient solution for cosmetic manufacturers looking to increase their production capacity and improve the consistency and quality of their products.
- 有竞争力的出厂价
- 高产标准
- 操作简便
介绍
来自10万级区域的塑料瓶和真空包装不需要洗涤，可以直接放入灌装机，生产过程从瓶子转盘到灌装机。
我们使用WATSON MARLOW的蠕动泵，从英国进口灌装过程，由日本进口的三洋电机驱动，使用进口管将液体溶液连接到泵上，具有精度高，调整方便的特点。此外，我们使用触摸屏和三菱的PLC，所有的调整和尺寸变化都很容易。气缸和传感器也是进口的，它具有耐用和灵敏的特点。
关键部分塞子部分与其他公司不同。在另一家公司的机器中，塞子通过塞子滑槽下降到气缸，我们添加一个机械组件，以更好地瞄准，更准确的运动。采用引力原理，设计机械结构少，功能稳定。
对于封盖头，我们使用第三代封盖头;它是从上一代更新的。身份扭转原理用于封顶;当力足够时，它可以自动滑动。因此盖子和瓶子不会受到伤害，瓶子也不能与盖帽一起旋转。
整机无需瓶子即可停止灌装，无瓶无喂料塞，无喂料盖塞缺。它将灌装，塞子和螺旋盖加在一台机器上，因此结构紧凑，经济实惠。
参数
产量：40-120瓶/分钟
填充精度：±1％
功耗：1.2KW，380V 50HZ
压缩空气：15m³/ h，0.4-0.6MPa
重量：600kg
尺寸：2000x1400x1700毫米
快速详情
类型：灌装机
条件：新的
应用：医疗
包装类型：瓶子
包装材料：木材
自动等级：自动
驱动类型：气动
电压：380V
功率：1.5Kw
产地：中国上海（大陆）
品牌名称：VKPAK
尺寸（长*宽*高）：L2000 W1000 H1700mm
重量：500kg
认证：CE
提供售后服务：工程师可在海外维修机械
产量：40-120瓶/分钟
