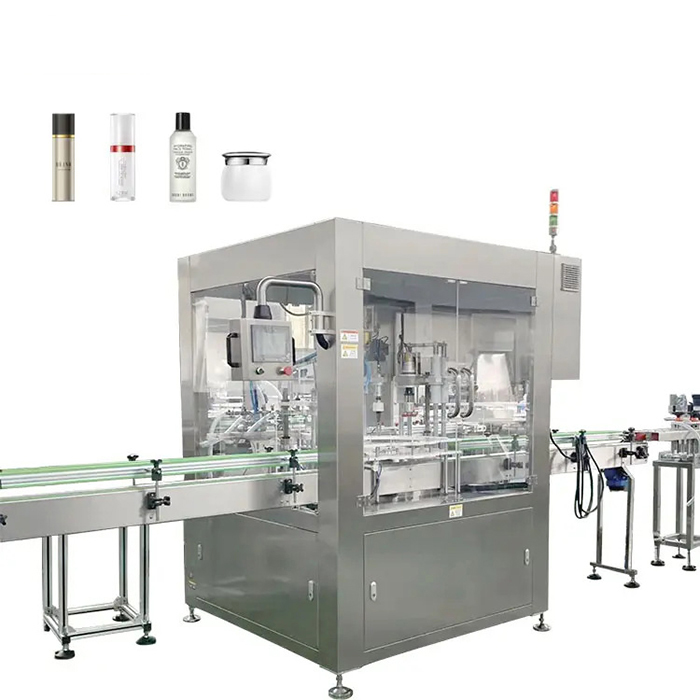

Rotary Filling and Capping Machine for liquid products of small bottle
让您知道：
Rotary Filling and Capping Machine for liquid products of small bottle is mainly available to fill eye-drop. E-liquid into various round and flat plastic and glass bottles with the range from2- 30ml.this e-liquid filling machine with e liquid sealing machine.
Rotary Filling and Capping Machine for liquid products of small bottle provides a regular plate to position,cork and cap;accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping.
Rotary Filling and Capping Machine for liquid products of small bottle is ceramic pump. It is easy to clean. It is able to wear and tear. There is no O-ring and seal gasket in the pump, so there is no impurity, and do not pollute the liquid. Besides, the filling precision of this pump is high.
Rotary Filling and Capping Machine for liquid products of small bottle use the transverse torque and automatic slipping unit. So it does not hurt the cover. The bottles don’t follow with the capping head, the turntable does not hurt the bottle, so the design protects the beautiful of the packaging material. The machine is controlled by touch screen and made with alarm.
特性
1, Man-machine dialogue system setting, visual convenient operation ,accurate filling level.
2, the mainframe running speed is stopless frequency conversion.
3, the product quantity can be controlled.
4, Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).
5, Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.
售后服务
1. Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
2.调试服务：在需求方进行产品的安装和调试，我们的工程师只有在得到您的同意后才会离开那里。
3.培训服务：我们的工程师将在安装和调试期间对您的员工进行操作培训，除非您的员工可以正常正常操作，否则他们不会离开那里。
4.维修服务：任何故障，一旦您向我们咨询，除特殊原因外，我们将在48小时内答复您。
5.终身服务：我们为售罄的所有产品提供终身服务，并以折扣价提供备件。
6.证书服务：我们可以根据客户要求免费提供相关证书给客户。
7.检验服务：您可以要求第三方检验公司或您的检验员在装运前检验产品。
快速详情
类型：旋盖机，旋盖机
应用：饮料，化学，日用品，医疗
驱动类型：电动
自动等级：自动
电压：380V 60HZ
功率：2kw
包装类型：瓶子
包装材料：木材
产地：中国上海（大陆）
Brand Name: VKPAK
尺寸（L * W * H）：1800 * 1000 * 1500mm
重量：550KG
认证：CE
提供售后服务：工程师可在海外维修机械
功能：电子液体瓶灌装，插塞，封盖
适用产品：电子液体/滴眼液/瓶/瓶盖
电子液体填充范围：2-30ml。
主电机：上海李超
生产能力：30-50瓶/分钟
压盖头：单头
合格率：≥99％
填充头：单头
控制系统：PLC
